Retrieval Motif Emergence in Small Transformers

Nelson Alex
6/4/2026

Controlled in-context retrieval benchmarks, checkpoint-by-checkpoint mechanistic measurements, and a full 150-epoch six-run matrix for studying circuit emergence in small transformers.

On this page. Abstract Main Result Setup Six-Run Matrix How The Circuit Forms Limits Related Work

Abstract

Small transformers in these controlled retrieval tasks do not converge to one fixed circuit or one universal birth trajectory. Across seeds and curricula they repeatedly converge to a stable retrieval motif while taking variable formation paths.

The most stable object is a downstream layer-2 retrieval or write role. Around it sits an additional support computation, strong query-key and selected-value structure, and a matching step that is real but harder to cleanly localize. What varies is the route by which that motif appears: behavior, copy, routing, probe variables, and faithfulness scores do not cross threshold in one fixed order, and exact head identity is not stable across all runs.

I ask two empirical questions: what retrieval mechanism appears inside a small transformer on a controlled in-context retrieval task, and which parts of that mechanism remain stable across training, seeds, and curricula. I answer those questions with three linked experiments: a symbolic key-value task where a retrieval circuit can be reverse-engineered after training, a story next-token benchmark that serves as a negative control and fails in the way a memorizing model should, and a full 150-epoch six-run textual retrieval matrix tracked checkpoint by checkpoint across curricula and seeds. The evidence supports a role-level motif rather than one universal head graph or one universal epoch of circuit birth (Olsson et al., 2022), (Nanda et al., 2023).

Main Result

The strongest claim supported by the full evidence is:

Small transformers repeatedly learn a staged retrieval motif, not one fixed universal head graph.

That motif has four recurring properties:

This is closer to a causal circuit family than to a single fixed head graph (Wang et al., 2022).

The contribution here is not to show that retrieval-like mechanisms exist in transformers. The new result is a controlled emergence study: a matched negative control, a full checkpoint-by-checkpoint six-run matrix across seeds and curricula, evidence that the stable object is a role-level motif rather than one fixed head graph, and evidence that slot matching is causally real but more distributed than the rest of the motif.

Experimental Setup And Measurements

Across the training-dynamics experiments, I use a small decoder-only transformer with:

The models are intentionally tiny (d_model = 48-64, 2 layers) so full circuit structure and checkpoint-by-checkpoint training dynamics can be inspected directly; the paper therefore establishes regularities in a tractable regime rather than a scaling claim about larger language models.

Per training step the runs record:

Per checkpoint the battery records:

These measurements separate:

Birth epochs are defined as the first checkpoint whose primary score crosses the reported threshold. For operator, variable, and faithfulness metrics, the birth also has to pass a cross-family minimum gate of 0.75, so a single easy family cannot create a false birth.

Cross-seed role matching is computed only at the final checkpoint of each run. For each role, heads are ranked by operator score with family-min score as a tiebreaker; the top head is the run’s role candidate; and cross-seed stability is summarized with candidate identity, top-3 overlap, and cosine similarity of the full per-head score profile.

Supporting material, exact commands, curated artifacts, and implementation details are collected in reproducibility.md.

1. Symbolic KV Retrieval

The first benchmark is a symbolic key-value retrieval task.

Prompt format:

<bos> K3 V4 ; K1 V7 ; K5 V0 ; Q K5 ->

Target:

V0

Dataset details:

I analyze the released epoch-126 checkpoint bundled with the benchmark. Its stored evaluation metadata records that all symbolic benchmark checks pass.

Checkpoint details:

Released checkpoint performance:

Split Accuracy Mean Margin
Train 0.9978 12.7831
Val 0.9520 11.7387
Test 0.9560 11.7673
OOD 4-pair 0.7280 4.8225

The symbolic benchmark provides the first strong evidence for a retrieval circuit of the form:

layer-1 support -> layer-2 query retargeting -> layer-2 value write

This establishes that the study is tracking a real learned in-context retrieval mechanism, not a toy where the model can solve the task without matching the current prompt.

2. Story Next-Token Negative Control

The second benchmark is a single-story next-token task. It is used as a negative control.

Setup:

Key metrics:

Checkpoint Val Acc Test Acc OOD Acc
Best held-out (epoch 1) 0.0940 0.0769 0.0769
Final 0.0427 0.0256 0.0256

Behavior and Variables

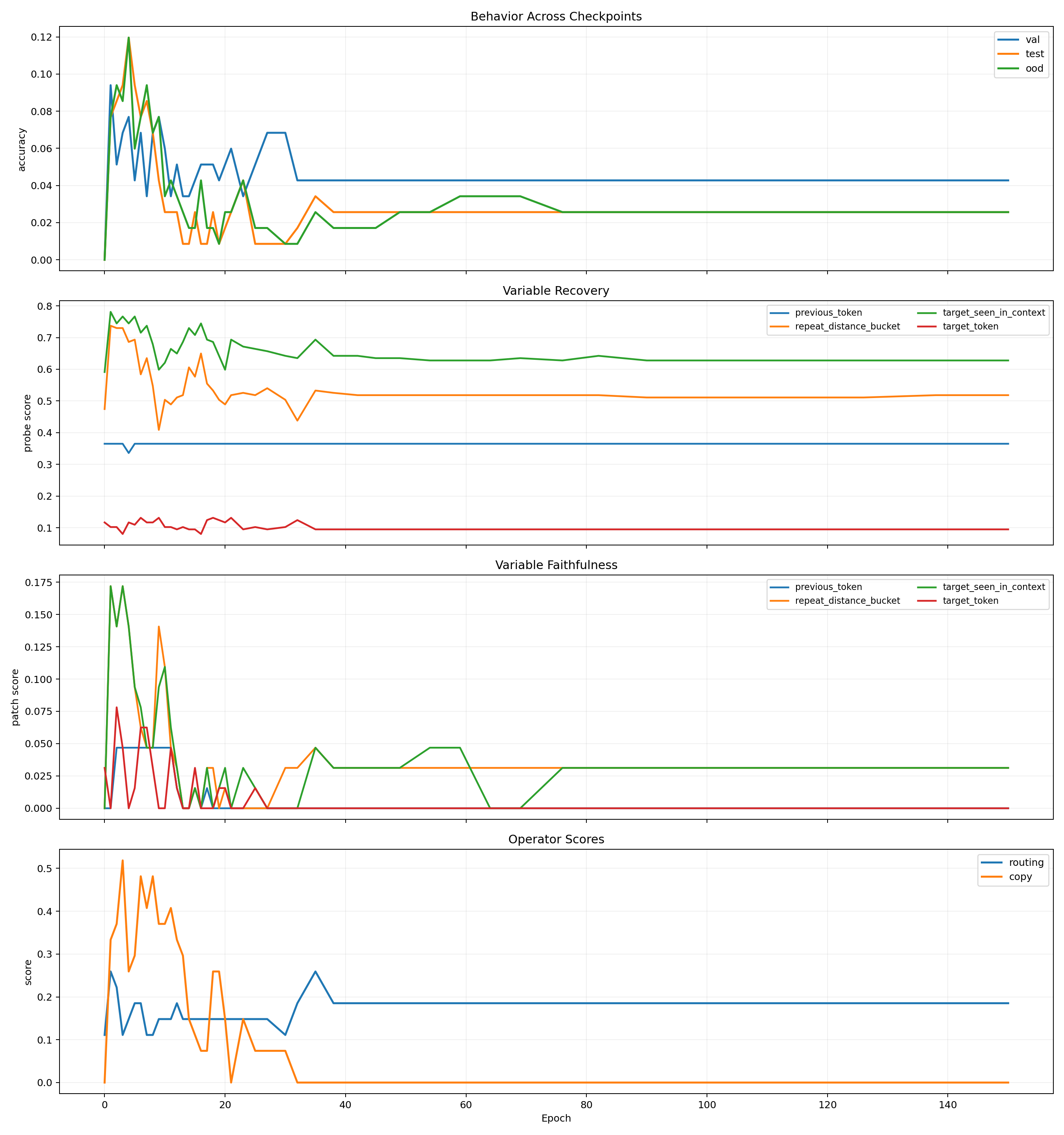

Story benchmark behavior and variable traces
Figure 1. The story negative control overfits instead of forming a clean mechanism: train behavior improves, held-out behavior collapses, and the tracked variables never settle into a faithful generalizing circuit.

Operators and Localization

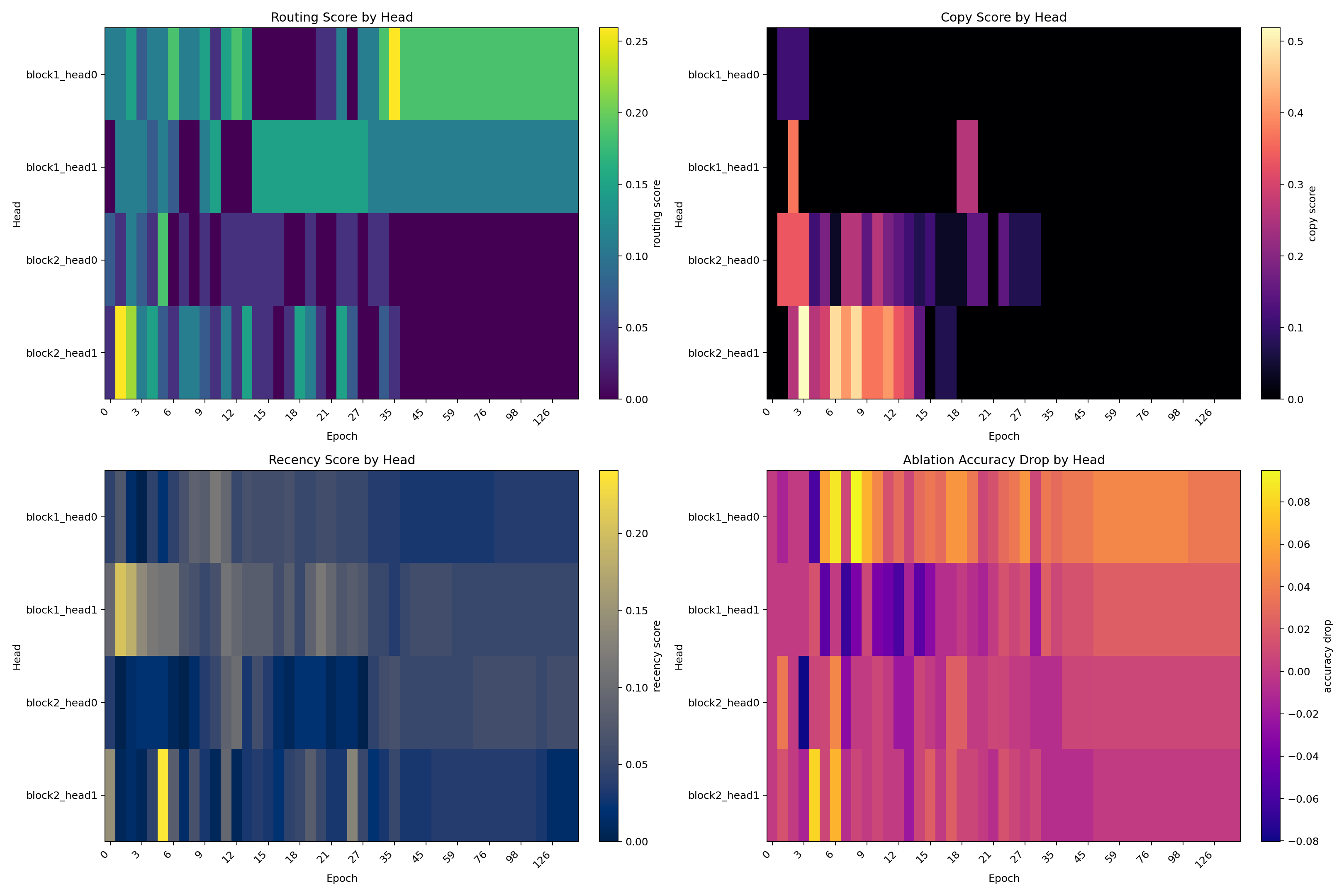

Story benchmark operator and localization summaries
Figure 2. Operator scores and localization in the story benchmark stay weak and inconsistent, which is what the harness should report when the task mainly invites memorization.

This benchmark fails in exactly the way it should if the model mainly memorizes:

That failure matters. It shows the measurement stack does not automatically invent a clean mechanism story when the task is bad.

3. Textual KV Retrieval

The main benchmark keeps retrieval algorithmically clean while making memorization much harder.

Prompt format:

<bos> Mara amber ; Ivo cedar ; Sera linen ; Q Ivo ->

Target:

cedar

Dataset design:

Main model family:

Birth thresholds used in the summaries:

Pilot Run

The pilot is the first clear positive emergence result in the study.

At epoch 30:

Final pilot localization:

That already points to the same high-level decomposition seen in the symbolic benchmark:

Pilot Circuit Emergence

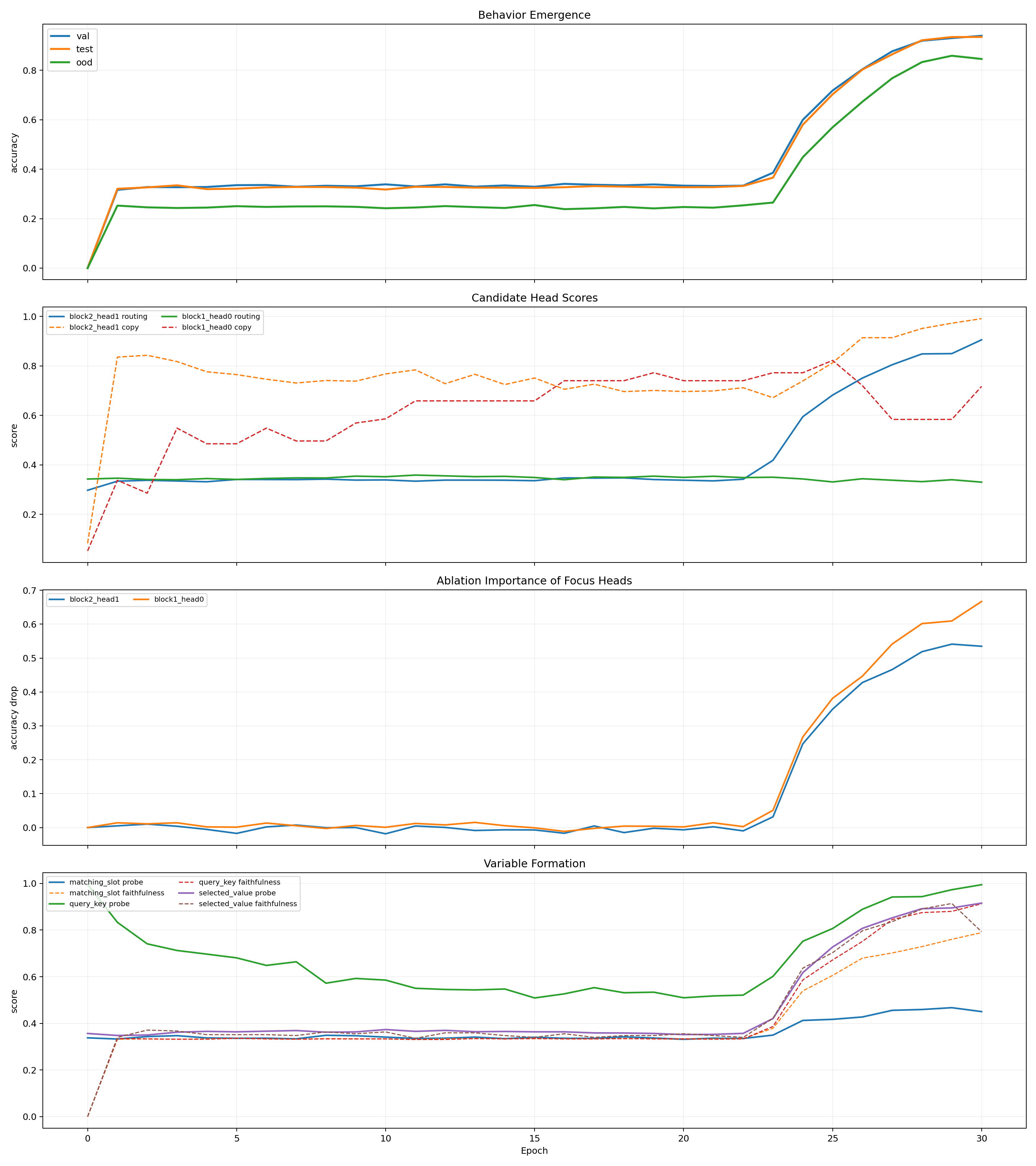

Pilot textual KV circuit emergence
Figure 3. The pilot does not improve smoothly. Held-out behavior rises sharply once routing, copy, and variable structure coordinate over a narrow transition window late in training.

Pilot Network Change

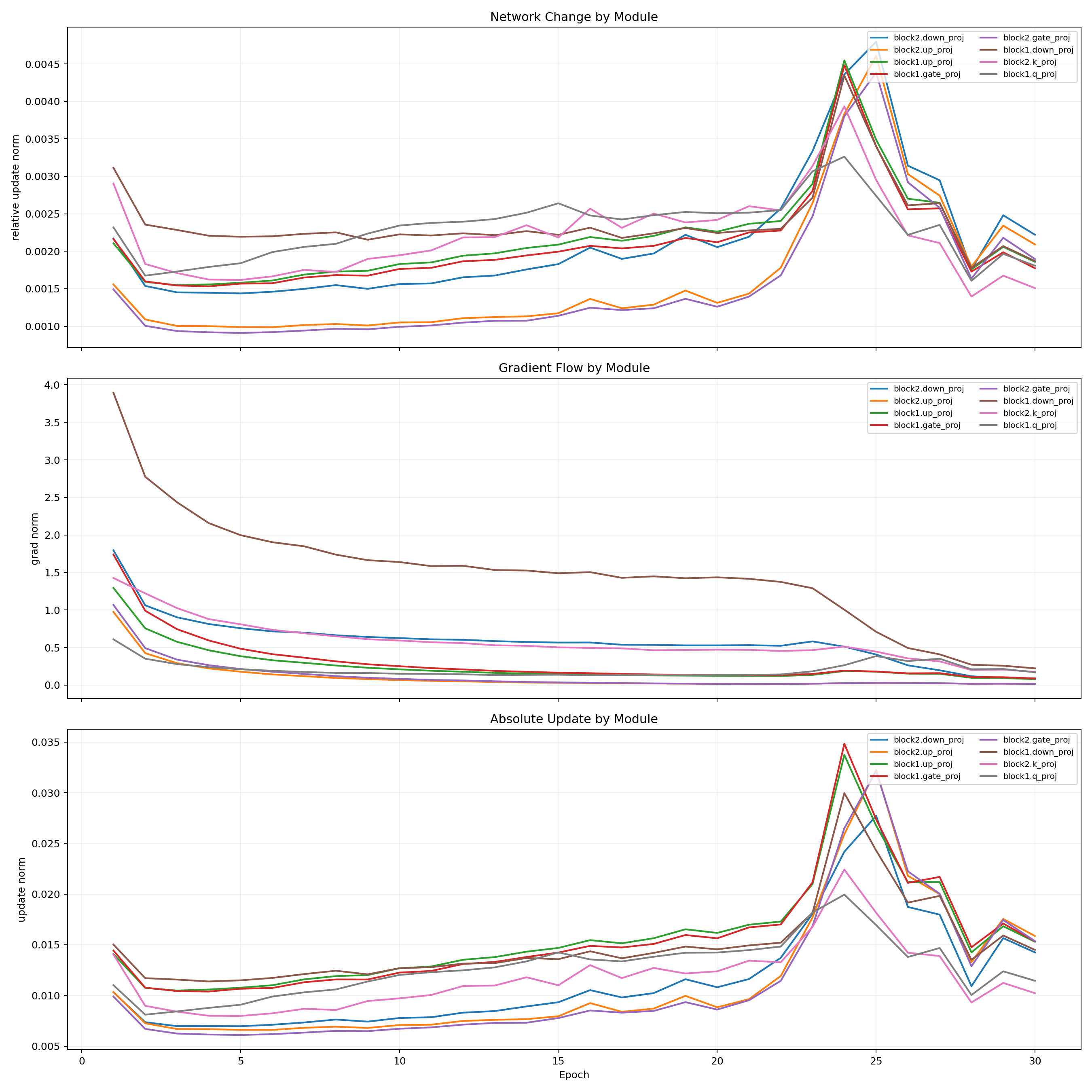

Pilot textual KV network change
Figure 4. Optimization reorganizes the network before the strongest behavioral gains appear. The pilot spends a long time preparing partial structure before the retrieval mechanism locks in.

Pilot Operators and Localization

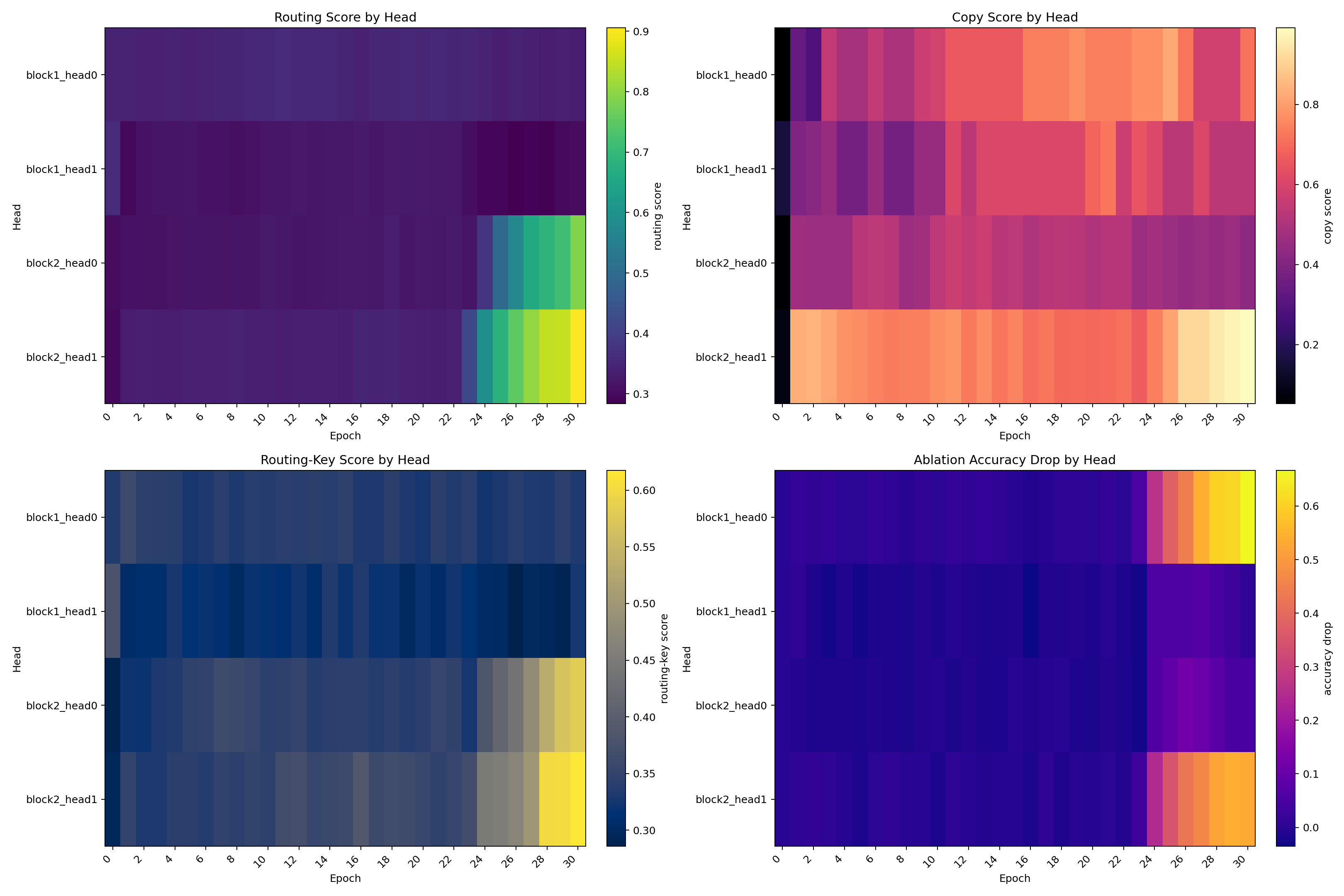

Pilot textual KV operator and localization summaries
Figure 5. By the end of the pilot, one layer-1 head and one layer-2 head dominate the mechanistic picture, supporting the interpretation of an upstream support role and a downstream retrieval-write role.

Pilot Representation Drift

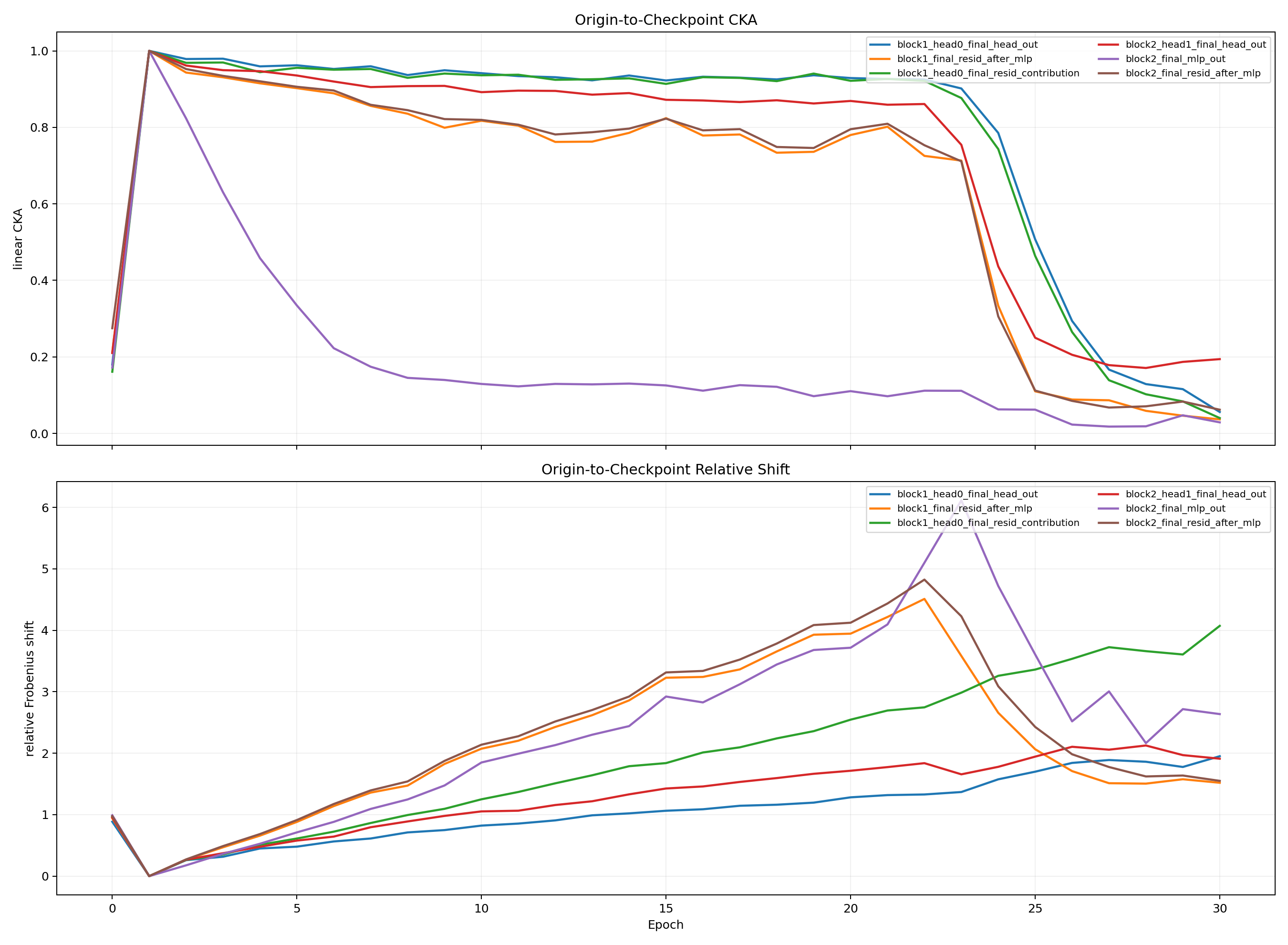

Pilot textual KV representation drift
Figure 6. Representation drift remains substantial during assembly and then becomes more structured as the pilot settles into a stronger retrieval solution.

The pilot is important because it shows a narrow transition window rather than vague gradual improvement.

Pilot Transition Window

Epoch Val Acc Test Acc OOD Acc Routing Head Routing Score Copy Head Copy Score
23 0.3857 0.3657 0.2650 block2_head1 0.418 block1_head0 0.772
24 0.5993 0.5797 0.4483 block2_head1 0.595 block1_head0 0.772
25 0.7180 0.7027 0.5693 block2_head1 0.682 block1_head0 0.822
26 0.8040 0.8027 0.6727 block2_head1 0.751 block2_head1 0.914
27 0.8767 0.8643 0.7677 block2_head1 0.805 block2_head1 0.914
28 0.9193 0.9213 0.8330 block2_head1 0.848 block2_head1 0.951
29 0.9300 0.9343 0.8587 block2_head1 0.850 block2_head1 0.973
30 0.9393 0.9347 0.8457 block2_head1 0.905 block2_head1 0.991

This is one of the clearest pieces of evidence in the study. The run does not improve smoothly. The parts needed for retrieval become coordinated over a short window, and held-out behavior rises rapidly once that coordination locks in.

Full 150-Epoch Six-Run Matrix

The main experiment is a 2 x 3 matrix:

curriculum_on:

curriculum_off:

Matrix details:

The exact run manifests and artifact bundle are listed in the supporting material.

Grouped Outcome Table

Condition Val Acc Test Acc OOD Acc Query Key Matching Slot Selected Value Routing Copy
Curriculum on 1.0000 1.0000 0.9921 0.9997 0.4583 0.9997 0.9729 0.9293
Curriculum off 0.9999 1.0000 0.9993 1.0000 0.5339 0.9999 0.9999 0.9521

Both conditions solve the task almost perfectly. That rules out one easy story: curriculum is not required for success.

Grouped Matrix Overview

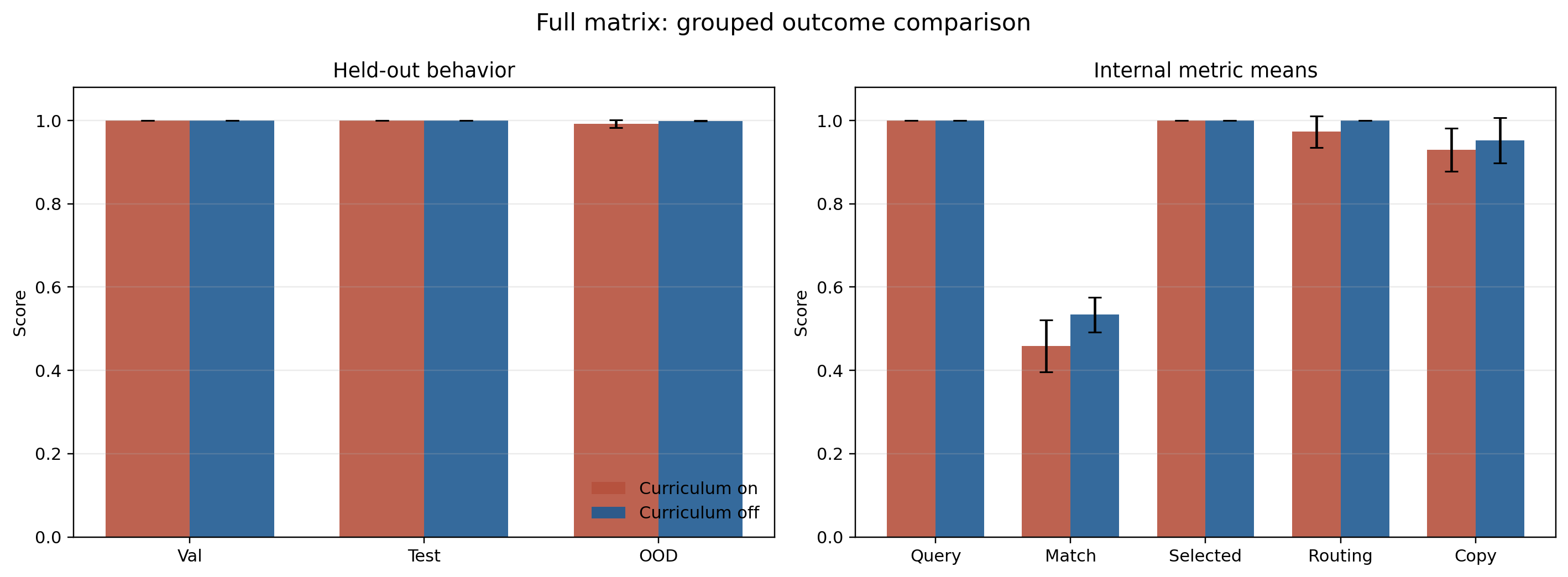

Grouped full-matrix overview
Figure 7. Both curricula solve the task almost perfectly, so the scientific signal is not solvability. The real difference is internal organization: query-key and selected-value structure saturate in both conditions, while the matching computation remains weaker and more variable.

The grouped comparison makes two points visible immediately:

Per-Seed Final Checkpoints

Condition Seed Val Acc Test Acc OOD Acc Top Ablation Head Routing Head Copy Head
on 0 1.0000 1.0000 1.0000 block1_head0 (0.807) block2_head1 (1.000) block2_head1 (0.857)
on 1 1.0000 1.0000 0.9967 block1_head0 (0.446) block2_head1 (1.000) block2_head1 (0.952)
on 2 1.0000 1.0000 0.9797 block2_head0 (0.787) block2_head0 (0.919) block2_head0 (0.979)
off 0 1.0000 1.0000 0.9990 block1_head0 (0.698) block2_head0 (1.000) block2_head1 (0.981)
off 1 0.9997 1.0000 0.9990 block1_head0 (0.729) block2_head0 (1.000) block2_head0 (0.875)
off 2 1.0000 1.0000 1.0000 block1_head1 (0.683) block2_head0 (1.000) block2_head0 (1.000)

This table is the concrete basis for the phrase stable motif.

What is stable:

What is not stable:

Final Localization Across All Six Runs

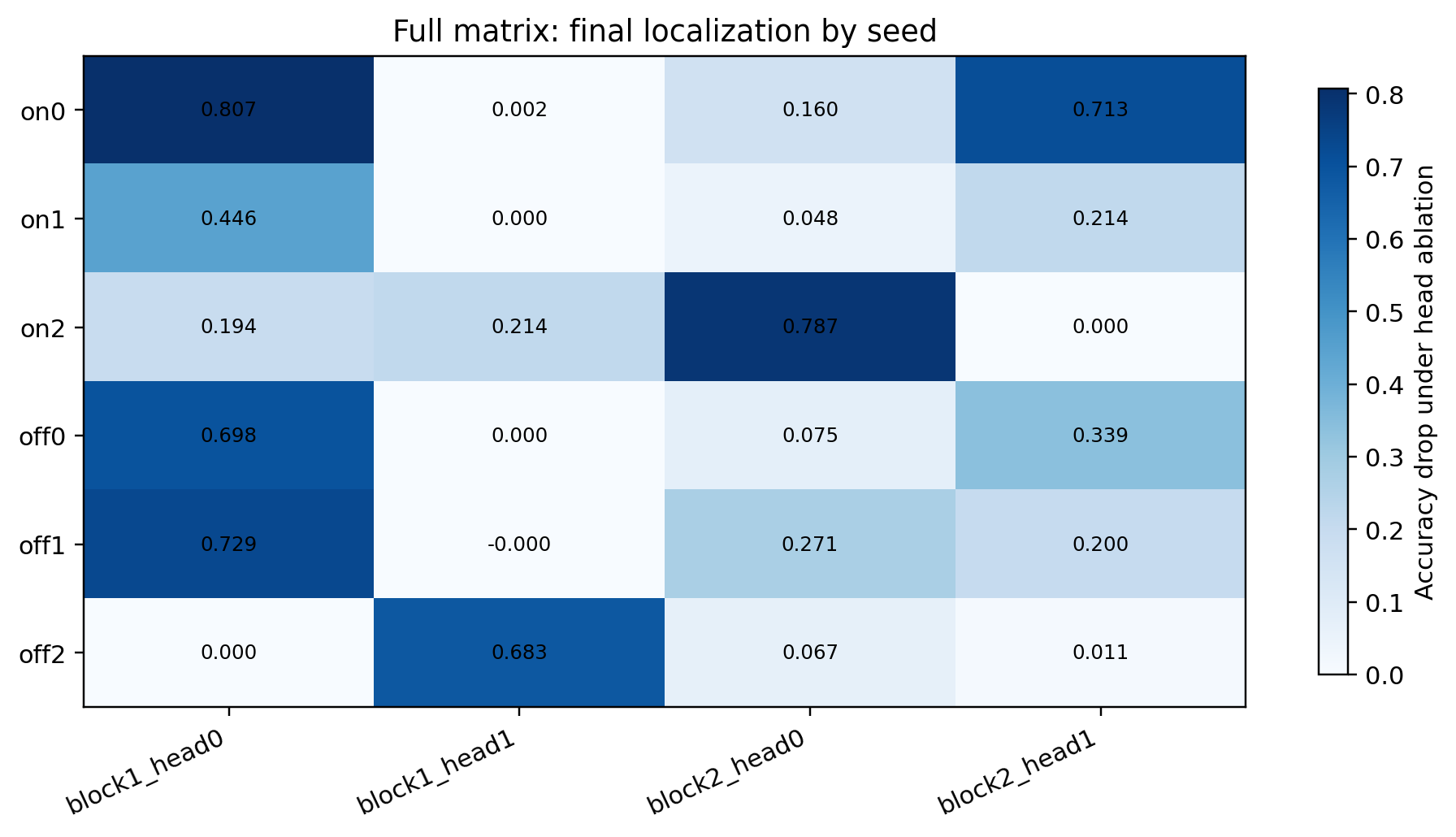

Final localization across all six runs
Figure 8. The stable object is a downstream layer-2 retrieval role, but the single biggest final ablation is usually upstream. In `5/6` runs the strongest final bottleneck is a layer-1 head, which argues for a stable downstream role plus a movable upstream support implementation rather than one fixed head graph.

This heatmap is the clearest compact view of the role-level result:

Figures 7 through 10 should be read together. Figure 7 shows that both curricula solve the task nearly perfectly, so the scientific signal is not solvability. Figure 8 then shows that the strongest final bottleneck is usually upstream even though the most stable role is downstream. Figure 10 sharpens the cross-seed claim: routing is the most stable score profile, copy is less stable, and curriculum-on trades higher head turnover for more reliable matching-slot faithfulness.

Emergence Is Staged, Not Universal

Condition Seed Behavior Birth Copy Birth Routing Birth Matching-Slot Faithfulness Birth
on 0 28 31 114 99
on 1 15 36 31 122
on 2 37 62 — 40
off 0 12 93 122 57
off 1 17 1 17 —
off 2 20 17 131 —

There is no single epoch where “the circuit appears.” The emergence tables show:

Emergence Timing Across Seeds

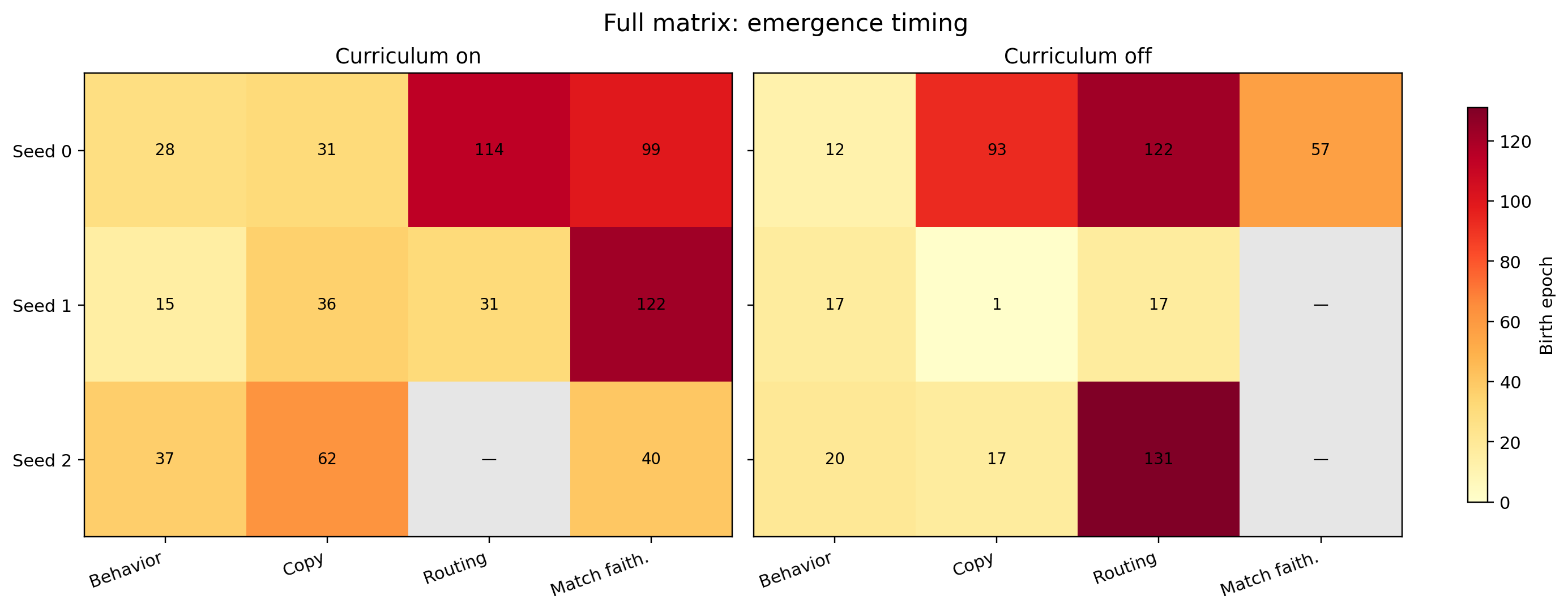

Emergence timing across all six runs
Figure 9. Birth epochs spread out dramatically across seeds, and their order can invert. Behavior can arrive tens of epochs before clean routing, while some faithfulness scores appear long before their corresponding probe births, so threshold crossing marks cleanup rather than literal first appearance.

The emergence heatmap makes the staged character of formation hard to miss:

The important point is not just that the epochs differ, but that their order can change. In some runs copy becomes clean far before routing, in others behavior and routing arrive together, and in others matching-related faithfulness only becomes robust much later. So the figure is evidence against one fixed internal schedule, not just against one fixed birth epoch.

Threshold Robustness

The staged-emergence result is not an artifact of one exact cutoff choice. Recomputing births with nearby primary thresholds leaves the qualitative picture intact:

So the exact epoch numbers are threshold-dependent in the expected way, but the paper’s main conclusion survives: birth times remain widely spread, and the ordering of behavior, copy, routing, and matching-related milestones still fails to collapse into one universal trajectory.

This also clarifies what a birth epoch means in the paper. It should be read as the first robust crystallization of a metric under the stated threshold and family-min gate, not as the literal first moment when the model begins to use the underlying computation at all. Different runs can therefore share similar partial computations while differing substantially in when those computations become clean, stable, and probe-friendly.

Matching-Slot Is The Hardest Part To Cleanly Localize

One result deserves separate emphasis because it appears in multiple batteries at once.

What the six-run matrix shows:

That pattern is stronger than a single weak probe result. It says the model is often using slot matching causally, but usually not as one neat probe-friendly axis. Matching appears to be the most distributed or implicit part of the retrieval motif.

That interpretation is also consistent with superposition-style accounts of overlapping internal structure (Anthropic, 2022), (Anthropic, 2023).

The current batteries narrow the question without fully resolving it. The sparse-feature and neuron summaries argue against one dominant local carrier, and the representation-drift summaries point to late layer-2 writeout as the least stabilized site in the matrix. Taken together, the current evidence is most consistent with slot matching being implemented as a distributed constraint that only becomes partially readable near late writeout, not as one clean intermediate variable.

Additional Signals Hidden In The Summaries

Signal Curriculum On Curriculum Off Why It Matters
Final routing role identity block2_head1 in 2/3 seeds, block2_head0 in 1/3 block2_head0 in 3/3 seeds downstream routing is the most stable role in the study
Routing score-profile cosine across seeds > 0.97 in every pairwise comparison ~0.9997 to ~0.9999 role stability is stronger than raw head-name stability
Mean operator handoffs, copy 11 3 curriculum-on runs reorganize more while assembling the mechanism
Mean operator handoffs, routing 12 9 routing keeps sharpening and sometimes reassigning late
Matching-slot faithfulness births 3/3 runs 1/3 runs curriculum mainly affects the cleanliness of the matching step
Hardest final behavior family usually longer_context_ood usually longer_context_ood, except one mild value_permutation weakness the main remaining difficulty is context-length generalization
Strongest final ablation head in layer 1 2/3 runs 3/3 runs the stable downstream role still depends on an upstream bottleneck in most seeds
Top final feature / neuron labels dominated by query_key and selected_value; matching_slot is rare dominated by query_key and selected_value; matching_slot is rare the feature and neuron batteries agree that matching is the least neatly packaged part
Most weakly stabilized late representation block2_final_mlp_out block2_final_mlp_out the late writeout region keeps reorganizing longer than the cleaner upstream representations

Stability, Turnover, And Birth Summary

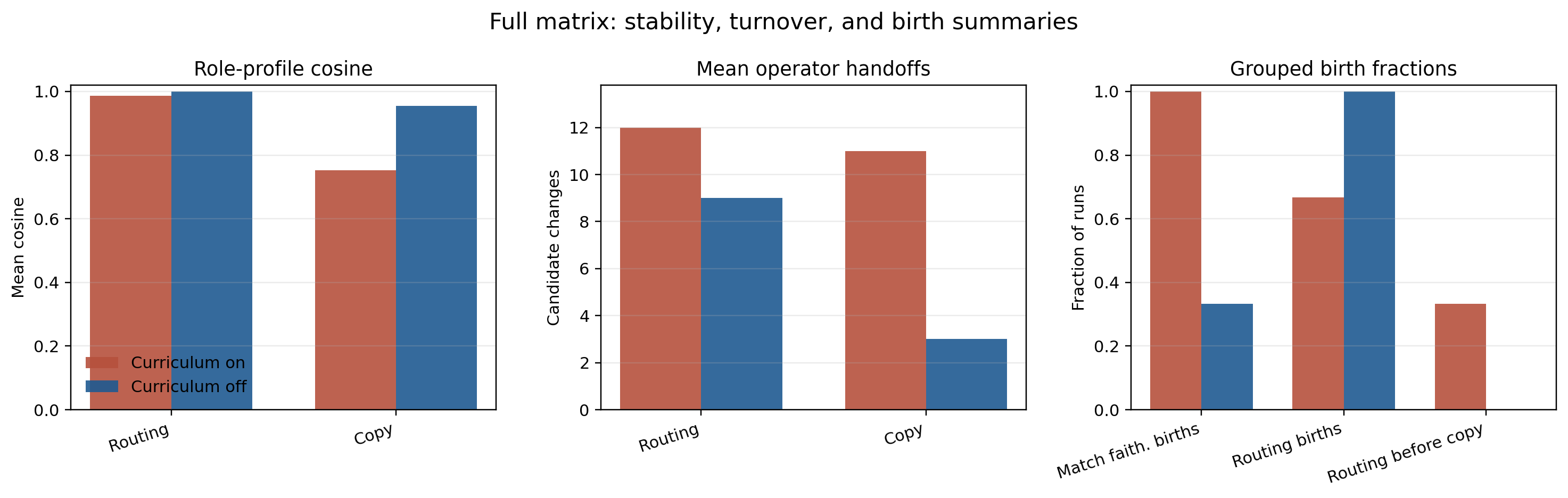

Full-matrix stability, turnover, and grouped birth summary
Figure 10. Routing is almost perfectly stable at the score-profile level even when head identities move, copy is less stable, and curriculum-on increases turnover while making matching-slot faithfulness much more reliable. Curriculum changes organization more than solvability.

This summary figure compresses the grouped evidence behind the main interpretation:

That last dissociation is striking enough to deserve a cautious interpretation. In this six-run matrix, curriculum-on is associated with more head turnover and more reliable matching-slot faithfulness, but that pattern is still an observation rather than a settled mechanism claim. One plausible hypothesis is that the easier early curriculum stabilizes the slot relation at the level of function before the exact carrier head fully settles. On that reading, curriculum-on helps matching become more reliably usable while leaving more freedom in which head realizes parts of the motif. The evidence supports the dissociation itself more strongly than this explanation, and more seeds would be needed to establish it confidently.

Empirical Answer: How The Circuit Forms

The current evidence supports the following empirical formation story.

1. The circuit does not appear all at once

The model does not jump from “no mechanism” to “finished mechanism” in one clean step.

What the matrix shows instead:

2. The most stable part of formation is the downstream layer-2 retrieval role

Across all six final 150-epoch runs:

So the most reliable answer to “what forms” in the matrix is the repeated emergence of a downstream layer-2 retrieval or write role.

3. The upstream part is real, but less head-stable

The matrix also shows a second important causal component besides the dominant layer-2 head, but not with one universal head identity:

So the strongest supported claim is:

4. The matching step is the hardest part to cleanly localize

matching_slot is the weakest part of the internal story, and the dedicated matching section above shows that this is not just one bad probe. The probe battery, faithfulness battery, sparse features, and neuron summaries all agree that slot matching is real but unusually distributed.

5. Behavior can become strong before routing looks clean by the strict operator metric

Representative examples:

The correct interpretation is not that routing is absent until late. It is that the model is already using a working retrieval process while the explicit routing metric keeps sharpening long after behavior is already good.

6. Curriculum mainly changes the cleanup stage, not the existence of the motif

Both curriculum_on and curriculum_off solve the task nearly perfectly.

What changes is not whether the retrieval motif exists, but how cleanly the last ambiguous part settles:

7. Two representative formation paths

Slower staged formation: curriculum_on seed0

Faster direct formation: curriculum_off seed1

The strongest empirical answer this study can currently give is:

the circuit forms in stages, through partial retrieval pieces becoming coordinated, with a very stable downstream retrieval role and a much less stable upstream implementation.

What All Findings Add Up To

Taken together, the three benchmarks support a more specific conclusion than “small transformers have circuits.”

The symbolic benchmark supports the claim that a tiny transformer can implement an in-context retrieval mechanism and that the mechanism can be decomposed into interpretable parts rather than behaving like an opaque lookup table.

The story benchmark supports the claim that the checkpoint-tracking harness does not automatically produce a success narrative. When the task mostly invites memorization, the harness reports weak local structure, no convincing births, and no stable faithful mechanism.

The textual benchmark supports the main result:

The most evidence-backed conclusion is therefore:

small transformers repeatedly learn a staged retrieval motif, not one fixed universal head graph.

That staged motif looks like this:

These results should be read as empirical regularities for a future formation theory, not as a mathematical explanation of why gradient descent selects this motif. What the paper establishes is the pattern a later theory would need to explain: a stable downstream retrieval role, a less head-stable upstream support component, widely varying birth times across runs, and a matching computation that is causally involved but unusually distributed.

At the same time, the page does not support the stronger claim that these regularities already separate architectural necessity from learned preference. In a model with only four total attention heads, a two-stage computation has limited places to live. So the contribution here is best read as identifying a real and repeatedly recovered motif in a constrained regime, and as establishing a baseline for future scaling comparisons, while leaving open how much of that motif remains once the model has many more degrees of freedom.

Limits

The study also makes several deliberate non-claims.

It does not yet show:

Those are the current boundary of the evidence, not hidden exceptions.

The scale limitation is also stronger than simple parameter count. With only four total attention heads, there are relatively few ways to distribute a two-stage retrieval computation. So the observed layer-1 support plus layer-2 retrieval organization may be partly architectural pressure in this regime, not a broad claim about how larger transformers must organize themselves. One intended value of the page is therefore to establish this constrained setting as a baseline for future scaling comparisons.

This study sits at the intersection of four nearby lines of work.

First, the most direct predecessor is the induction-head literature. Olsson et al. (2022) showed that in-context learning in transformers can be linked to a concrete attention-head mechanism, and that this mechanism emerges during training rather than existing from the start. The retrieval benchmark here is smaller and more controlled, but it asks a parallel question: whether an in-context retrieval behavior decomposes into a reusable motif and whether that motif can be tracked as it forms.

Second, this work is close in spirit to full-circuit reverse engineering in more natural settings. Wang et al. (2022) on indirect object identification showed that a natural language behavior can be explained by a large but structured circuit and evaluated with faithfulness-style criteria. The present experiments operate in a much smaller regime, but the same distinction matters here: the goal is not just to find decodable variables, but to recover a causal mechanism.

Third, the staged-emergence result belongs in the same conversation as grokking and progress-measure work. Power et al. (2022) made small algorithmic datasets into a tractable setting for studying delayed generalization, and Nanda et al. (2023) argued that apparently sharp transitions can hide smoother internal progress measures. The six-run matrix here points to a similar picture: behavior, copy, routing, and matching-related signals do not appear at one universal birth point, and threshold crossings often mark cleanup rather than literal first appearance.

Fourth, the feature and representation interpretation in this study is informed by superposition and sparse-feature work from Anthropic. Toy Models of Superposition motivates why clean one-neuron or one-direction explanations are often too optimistic, Towards Monosemanticity motivates sparse dictionary-style decomposition, and Superposition, Memorization, and Double Descent is directly relevant to the tension between retrieval circuits and shortcut or memorizing solutions. The matching-slot result here fits that theme: the model appears to use slot matching causally, but not usually as one neat isolated feature.

  1. Olsson et al., “In-context Learning and Induction Heads,” 2022. https://arxiv.org/abs/2209.11895
  2. Wang et al., “Interpretability in the Wild: a Circuit for Indirect Object Identification in GPT-2 small,” 2022. https://arxiv.org/abs/2211.00593
  3. Power et al., “Grokking: Generalization Beyond Overfitting on Small Algorithmic Datasets,” 2022. https://arxiv.org/abs/2201.02177
  4. Nanda et al., “Progress Measures for Grokking via Mechanistic Interpretability,” 2023. https://arxiv.org/abs/2301.05217
  5. Anthropic, “Toy Models of Superposition,” 2022. https://www.anthropic.com/research/toy-models-of-superposition
  6. Anthropic, “Towards Monosemanticity: Decomposing Language Models With Dictionary Learning,” 2023. https://www.anthropic.com/research/towards-monosemanticity-decomposing-language-models-with-dictionary-learning
  7. Anthropic, “Superposition, Memorization, and Double Descent,” 2023. https://www.anthropic.com/news/superposition-memorization-and-double-descent
  8. Anthropic, “Tracing the thoughts of a large language model,” 2025. https://www.anthropic.com/research/tracing-thoughts-language-model
